VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in San Antonio, TX | Lightwell Windows San Antonio

The VLX 100 Swing / Entry Door is a modern aluminum entry system with a slim 2.56-inch profile, multi-point locking, and a clean sightline that lets more light through than a typical front door. Homeowners across San Antonio choose it for contemporary builds, mid-century remodels, and replacing dated steel doors that feel heavy and dark. Lightwell Windows San Antonio is an authorized ViewLux installation partner, which means you get factory-backed product with local installation, local service, and a team that stands behind every door we put in. Call (325) 420-4173 to schedule a free consultation.

Call (325) 420-4173

Product Overview – VLX 100 Swing / Entry Door

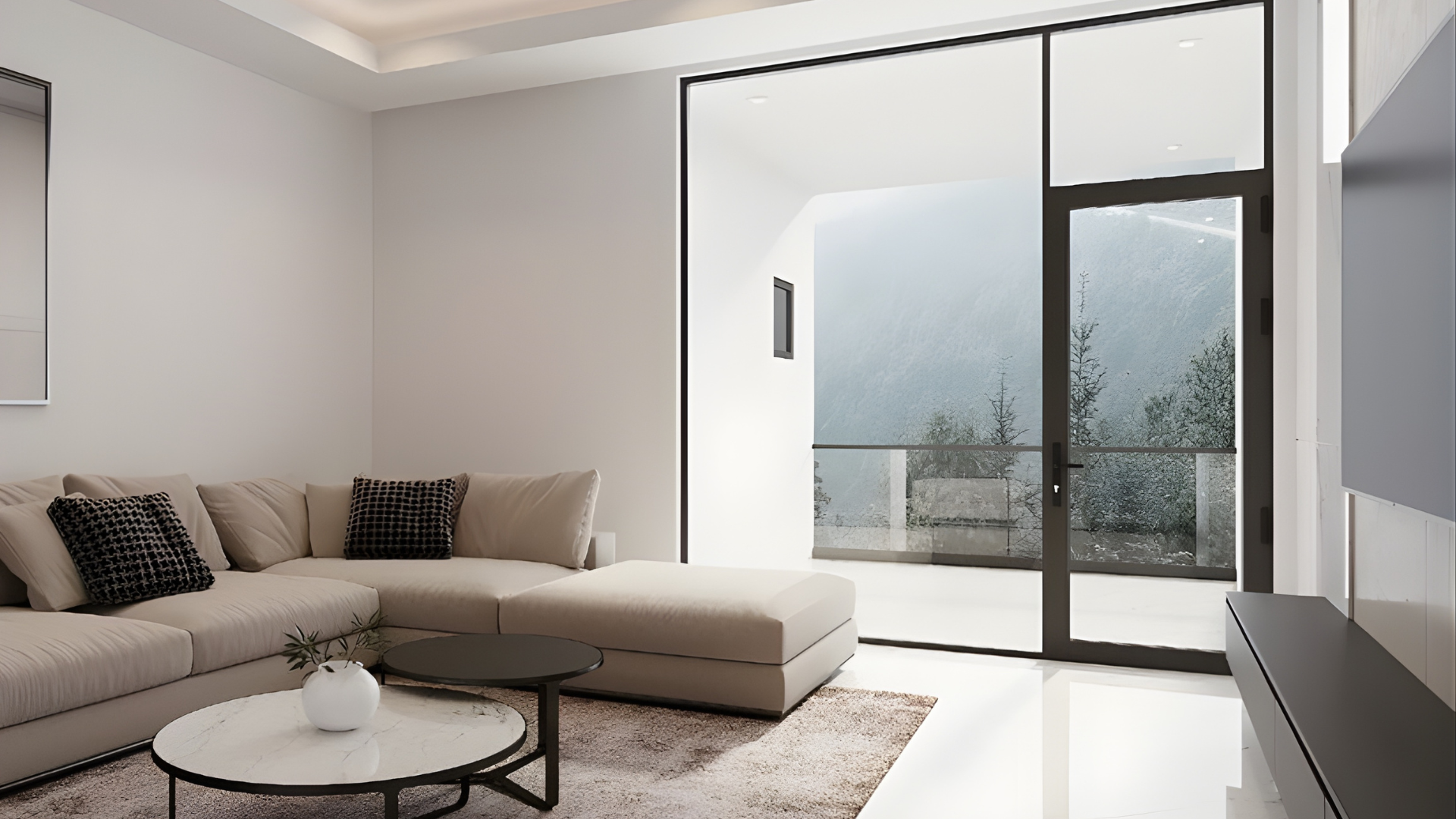

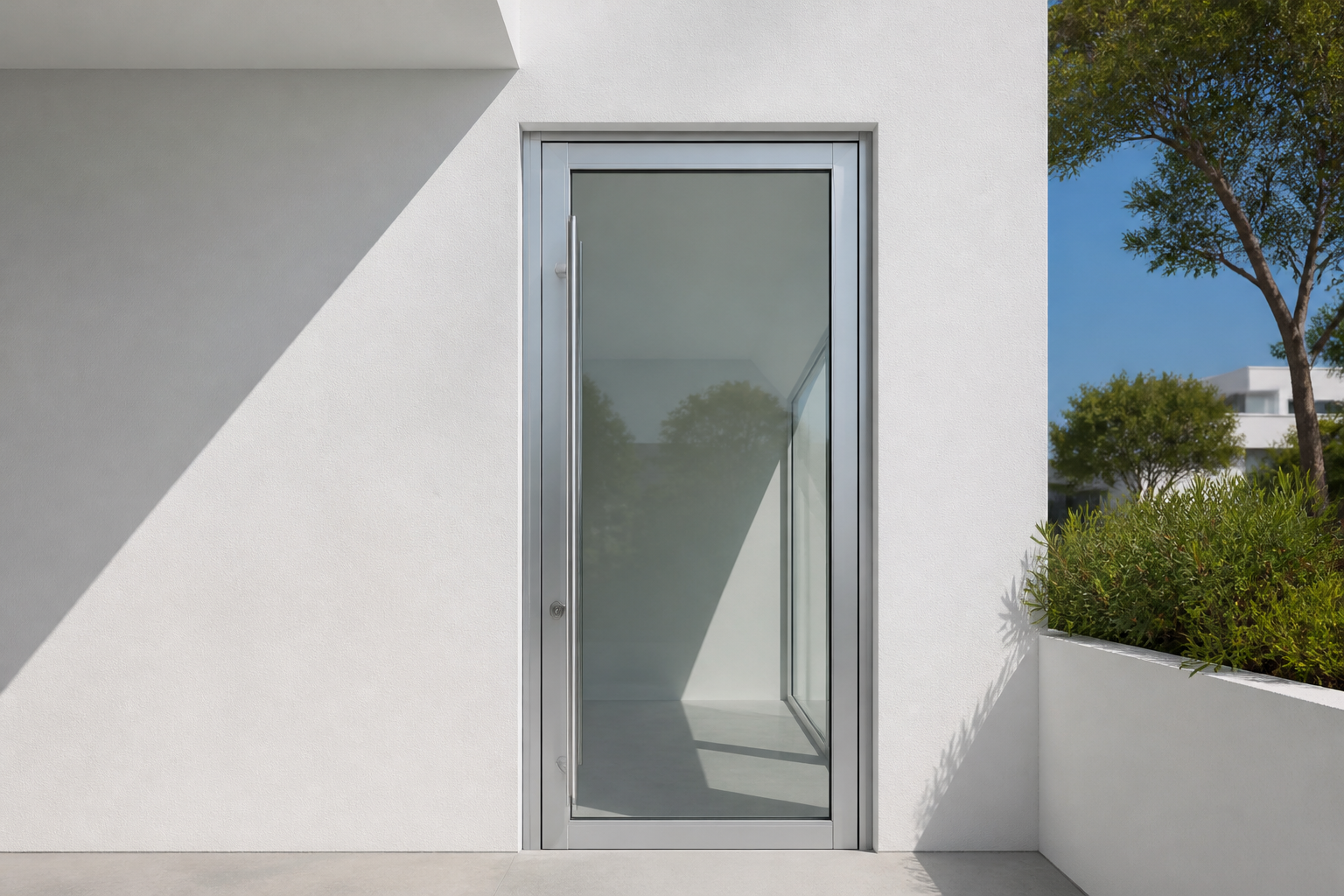

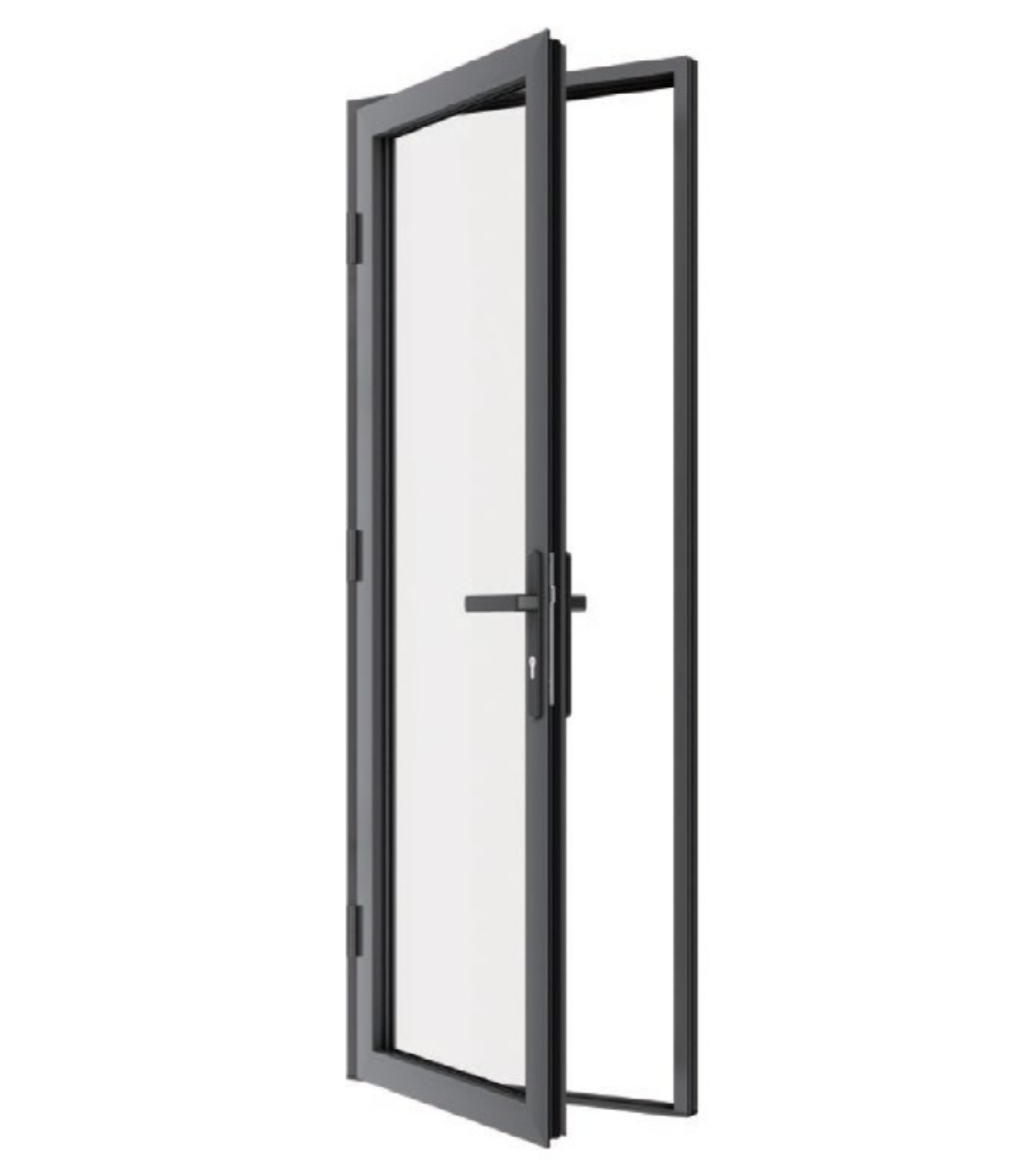

The VLX 100 Swing / Entry Door is built around a simple idea: a door should disappear into the architecture, not fight it. The aluminum frame is just 2.56 inches wide, which is noticeably slimmer than most vinyl or steel options. That slim line means more glass, more natural light in your entryway, and a cleaner face on the front of your home. ViewLux engineers the VLX 100 as a single entry door with a minimalist frame and multi-point locking hardware built in, so security doesn’t require a bulky, ugly lock plate bolted onto the surface.

We see a lot of interest in this door from homeowners in Alamo Heights, Terrell Hills, and the Pearl District area who are updating older bungalows or building new modern homes. The aluminum construction handles San Antonio heat without warping the way some vinyl products do. Aluminum doesn’t absorb moisture, doesn’t swell, and doesn’t lose its shape over time. The 0.098-inch wall thickness on the extrusions gives the frame real rigidity, so the door opens and closes the same in year ten as it does on day one.

Buyers choose the VLX 100 when they want an entry door that feels European in its design thinking but is installed and serviced by a local San Antonio team. It’s not the cheapest door on the market. It’s the one that looks better, lasts longer, and gets compliments from neighbors.

Technical Specifications

Here’s what the VLX 100 Swing / Entry Door brings to the table in plain terms. These numbers matter when you’re comparing doors side by side.

• Profile width: 2.56 inches, giving you maximum glass area with a structurally sound aluminum frame.
• Wall thickness: 0.098 inches on the aluminum extrusions for long-term rigidity and resistance to racking.
• Maximum span: Up to 48 inches wide, which covers most standard single entry openings in San Antonio homes.
• Locking: Multi-point locking system engages at multiple points along the door edge when you lift the handle.
• Glass options: Clear, frosted, obscure, Low-E, tempered, and laminated.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen or no screen at all.
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, AAMA 812 perimeter sealing.

All glass packages are available in tempered or laminated configurations, and laminated glass adds a meaningful layer of impact resistance and sound dampening. If you want specifics on which glass spec matches your opening, call (325) 420-4173 and we’ll walk through it with you.

Performance Features

Thermal Efficiency. The VLX 100 uses thermal break technology inside the aluminum frame, which separates the interior and exterior metal surfaces to stop heat from conducting through. That’s how an aluminum door, a material known for conducting temperature, achieves NFRC-rated energy performance that holds up in San Antonio summers. Low-E glass coatings further reduce solar heat gain.

Acoustic Performance. If you live near Loop 410, I-10, or any busy San Antonio thoroughfare, door acoustics matter more than most people realize until they upgrade. The VLX 100 with laminated glass noticeably cuts road noise. The tight frame tolerances and full-perimeter gaskets reduce sound leaks around the edges, not just through the glass.

Airtightness & Weather Seal. The door is designed with continuous compression gaskets that seal against the frame on all four sides. That’s what keeps conditioned air inside in August and outside in January. The AAMA 812 low-expansion foam sealant applied on every perimeter joint during installation eliminates the small gaps that cause drafts and dust intrusion.

Waterproofing. San Antonio gets hard, fast rains, especially in spring and fall. The VLX 100’s sill design and integrated weather gaskets channel water away from the threshold. During installation, we follow AAMA 2400/2410 standards and apply AAMA 812 foam sealant at every perimeter joint, then verify with a water test before we pack up.

Wind Resistance. The aluminum frame is wind-load rated for local climate requirements, which matters during Texas spring storms and any remnants of Gulf weather that push inland. A door that flexes in high wind leaks air and water. The 0.098-inch wall thickness and frame structure keep the VLX 100 rigid under pressure.

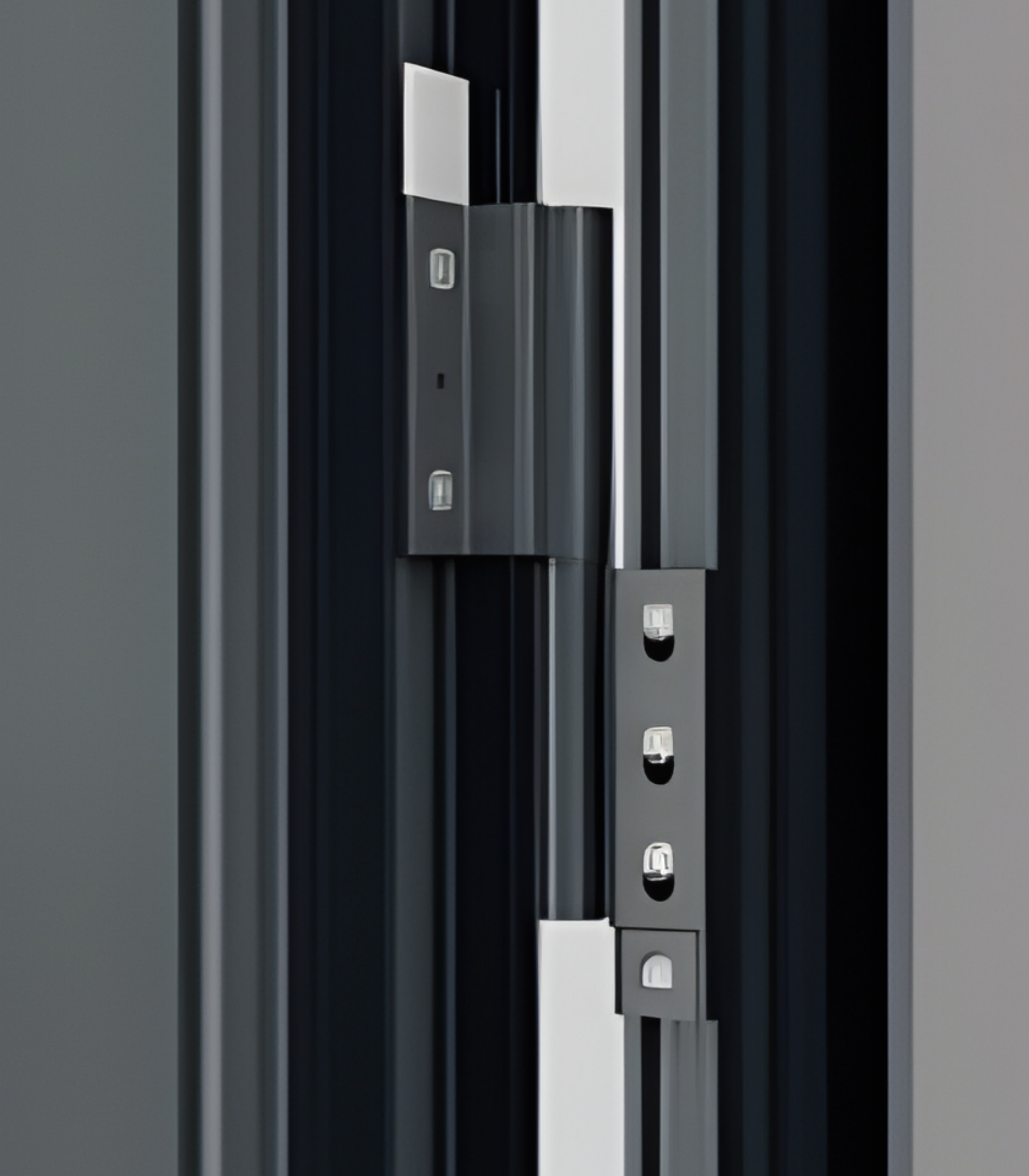

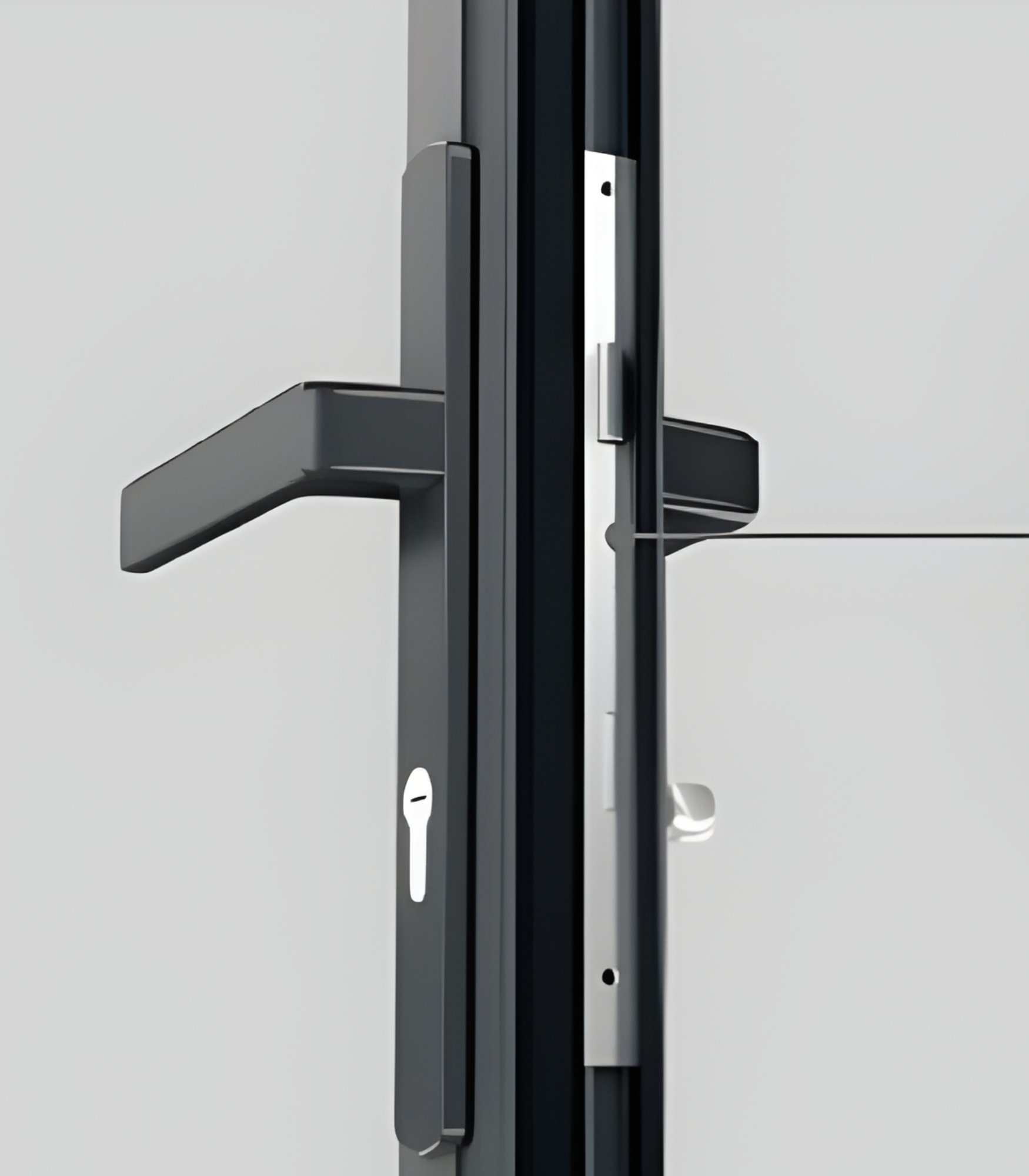

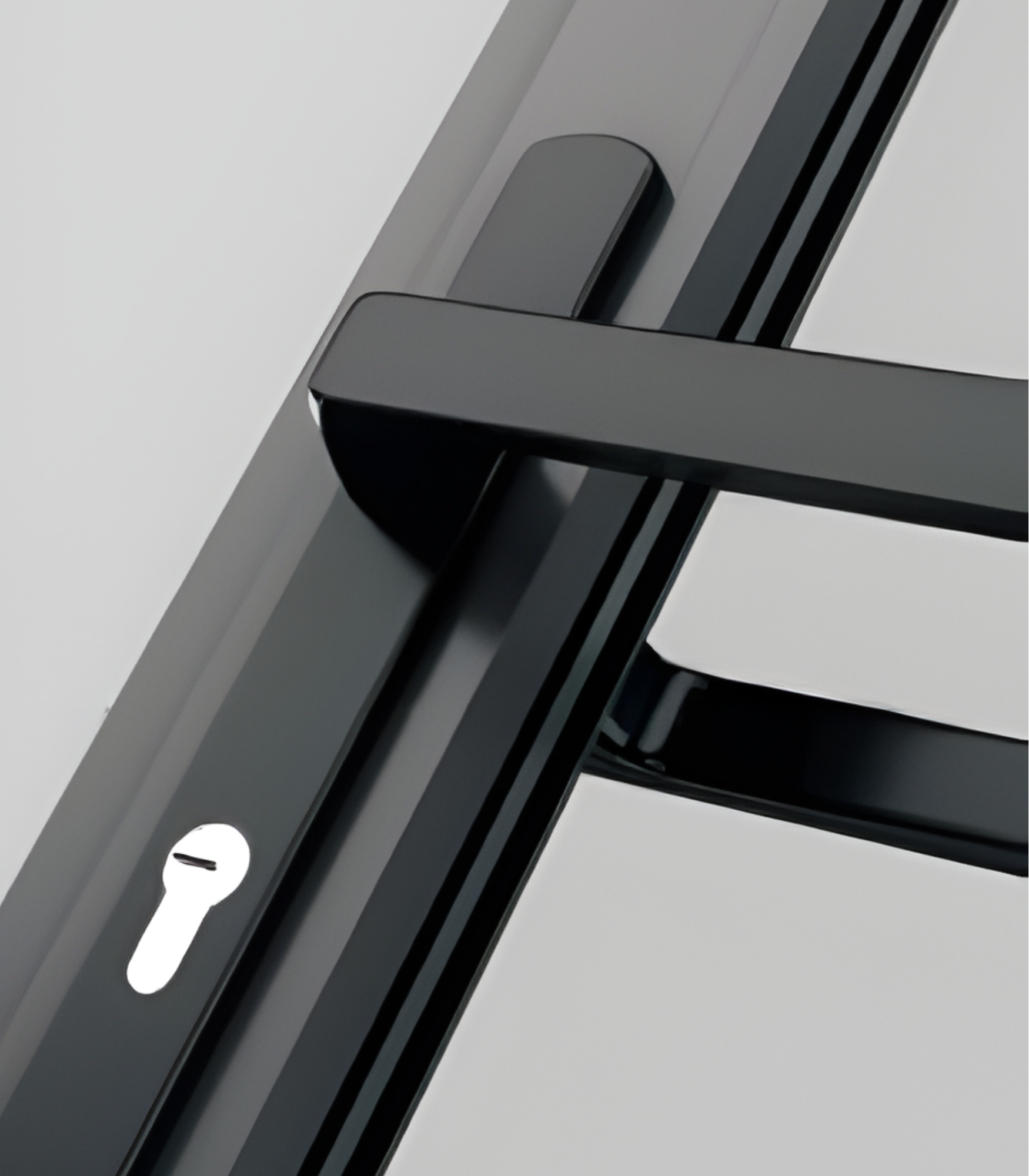

Security & Hardware. The multi-point locking system is the headline here. Instead of a single deadbolt at one point, the VLX 100 engages locking points along the full height of the door edge. That makes forced entry dramatically harder and also improves the air seal, because the door is pulled tight against the gaskets when locked.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is our most popular choice in San Antonio right now. It reads bold and modern, and it pairs beautifully with white stucco, limestone, or brick exteriors. Pure White works well for homes with a softer palette or Mediterranean influence. Anodized Silver has a raw, industrial character that suits loft-style and contemporary builds. Bronze sits somewhere between black and brown, and it’s a strong match for homes with warm stone or dark wood accents. Champagne is less expected, with a warm metallic tone that elevates a simple entry. Teak Wood is a powder-coated wood-look finish that gives you the warmth of timber with none of the maintenance.

On glass, clear is the default for maximum visibility and daylight. Frosted and obscure options add privacy for front doors that face the street or a close neighbor. Low-E is the workhorse for San Antonio heat, reflecting infrared energy while letting visible light pass. Tempered glass is safety-rated and required in many door applications. Laminated glass adds impact resistance and significant sound dampening, which is worth considering if you’re near a busy road or you want storm-season peace of mind.

Installation by Lightwell Windows San Antonio in San Antonio

We install every VLX 100 Swing / Entry Door as if it were going on our own homes. The process starts with a pre-install inspection where we measure the rough opening, check the sub-sill for level, and identify any water damage or structural issues before the old door comes out. If there’s rot or a shifting foundation issue, we flag it and address it. We don’t hide problems and we don’t install over them.

During installation, we set the door level, plumb, and square. That phrase gets thrown around, but it’s the literal difference between a door that swings open on its own and one that stays put, between a tight seal and a gap you can feel on a windy day. We follow AAMA 2400/2410 installation standards on every job and apply AAMA 812 low-expansion foam sealant on all perimeter joints. That foam expands to fill every void without pushing the frame out of alignment, which is the opposite of what cheap expanding foam from a hardware store does.

After the door is set and foamed, we run a final water test, check the hardware and multi-point lock engagement, and clean up the work area. We haul away the old door and all packaging. San Antonio’s climate, with its intense UV exposure and seasonal downpours, will expose any installation shortcut within a year or two. Our process is built so that doesn’t happen.

One more thing worth knowing: ViewLux warranties cover manufacturing defects, but they don’t cover failures caused by improper installation. A door that’s installed out of square will bind, leak, and eventually fail. Authorized installation protects your warranty and your investment. That’s the practical value of working with Lightwell Windows San Antonio rather than a general handyman or a lowest-bid contractor.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door? The VLX 100 is a made-to-order product, so lead times typically run 4 to 8 weeks from order confirmation. Custom finishes, sizes, or glass packages can extend that. We’ll give you a committed timeline when you order. Call (325) 420-4173 if you have a specific project deadline in mind.

Does the VLX 100 qualify for energy tax credits? The VLX 100 with Low-E glass may qualify for federal energy efficiency incentives depending on the specific glass package and the current program year requirements. Eligibility rules change, so the honest answer is: it depends on configuration. We’ll verify current credit eligibility for your specific door spec during your consultation. Call (325) 420-4173 and we’ll walk you through it.

What warranty comes with the Swing / Entry Door? The VLX 100 carries a manufacturer’s warranty from ViewLux through Lightwell Windows San Antonio’s authorized partner channel. Warranty coverage applies when the door is installed per AAMA standards, which is exactly how we install every unit. We’ll provide the full warranty documentation, in writing, before you sign anything.

Can I customize the size? Yes, within the structural limits of the frame. The VLX 100 supports door widths up to 48 inches. If your opening is non-standard, we’ll measure and confirm the exact spec before ordering. Custom sizing is one of the reasons lead times are measured in weeks, not days. Call (325) 420-4173 and we’ll come measure your opening for free.

How do I maintain aluminum frames? Aluminum needs very little. Wipe down the frame and glass with a mild soap solution a few times a year, keep the track and sill clear of debris, and lubricate the multi-point lock and hinges annually. The powder-coated finishes don’t require painting or sealing. In San Antonio’s dust and pollen seasons, a quick rinse keeps everything looking new.

Get a Quote – VLX 100 Swing / Entry Door in San Antonio

If you’re considering the VLX 100 for your San Antonio home, the next step is simple. We’ll come out, measure your opening, review your glass and finish options, and give you a written, line-item quote with no pressure and no surprises. Call (325) 420-4173 to schedule your free on-site measurement and estimate. Whether you’re in Stone Oak, King William, Alamo Heights, or anywhere around San Antonio, we’ll bring samples and straight answers.

Written by the team at Lightwell Windows San Antonio, authorized ViewLux installation partner serving San Antonio, TX and surrounding communities.
