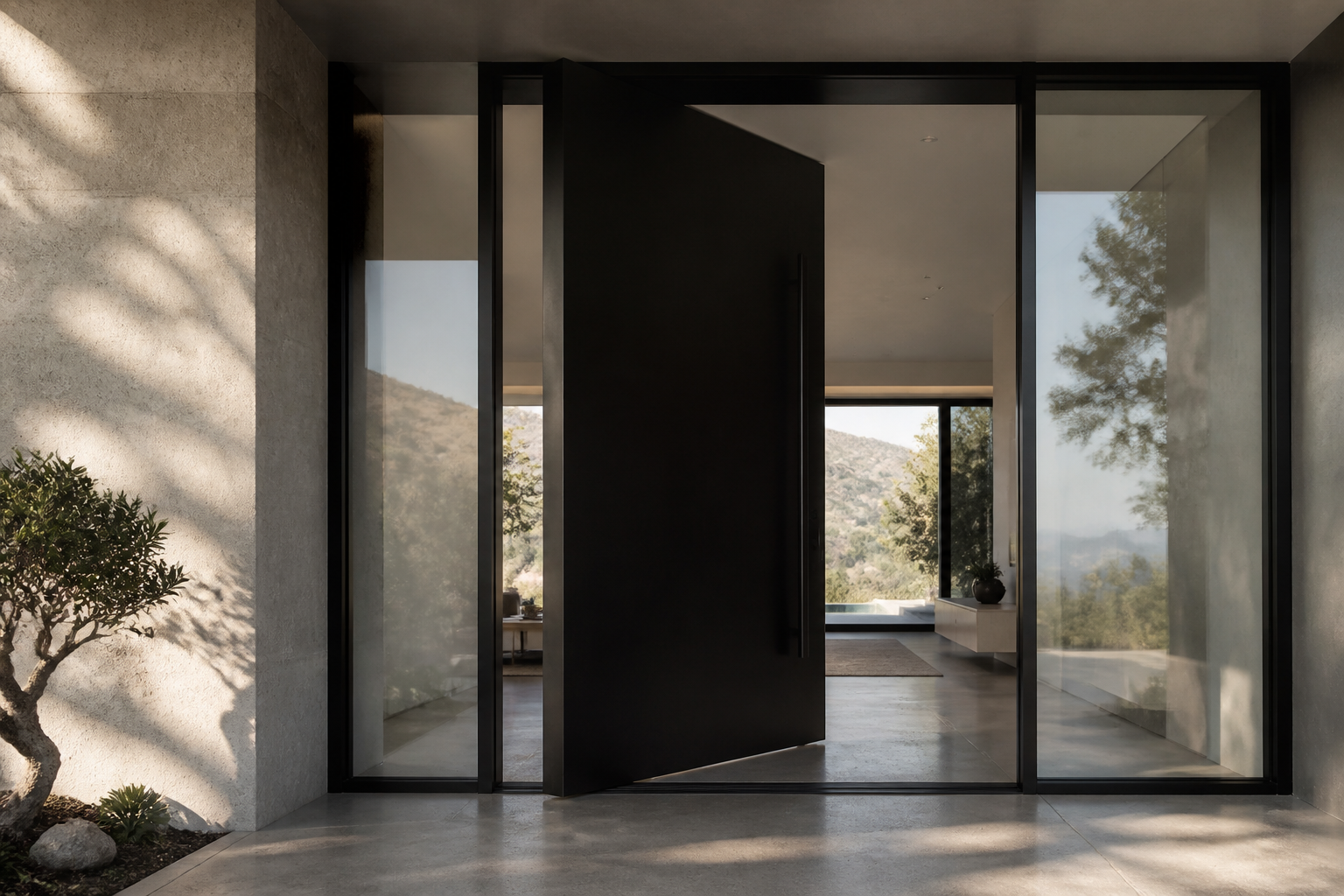

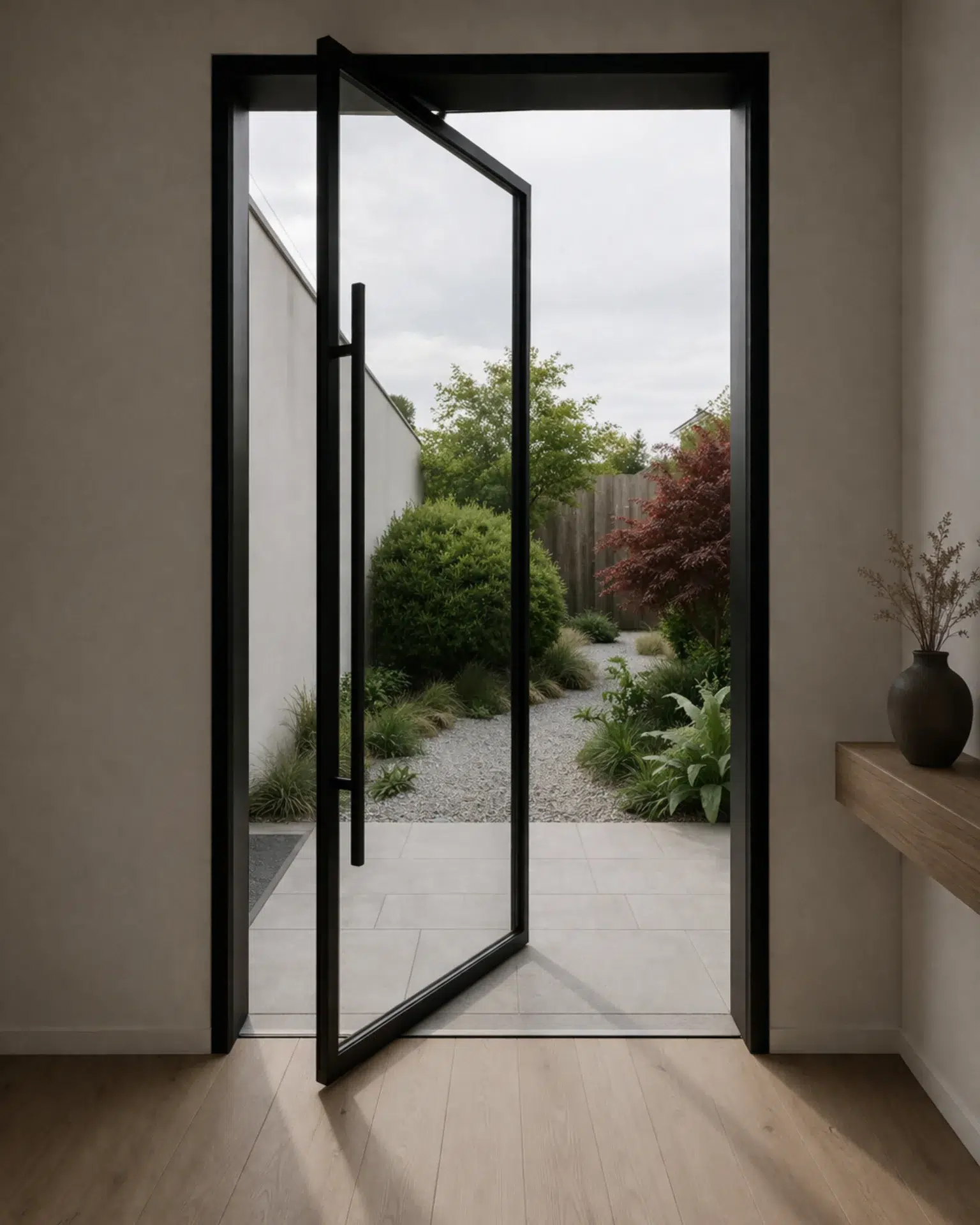

The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of traditional side hinges, letting you run oversized glass panels up to 60 inches wide and 120 inches tall without sag or strain. It’s the door homeowners in Alamo Heights, Terrell Hills, and King William choose when they want the front entrance to read as architecture, not just an opening. Lightwell Windows San Antonio is an authorized ViewLux installation partner, which means you get the product, the measured fit, and the warranty-safe installation from one local team. Call (325) 420-4173 to talk specs, pricing, or a free on-site measurement.

Call (325) 420-4173

Product Overview – VLX 100 Pivot Door

The VLX 100 is built around a simple idea: a door should be a defining feature of a home, not a weak point in the wall. The pivot mechanism places the rotational axis off to one side, so the full panel weight transfers through the floor and header instead of hanging off side hinges. That’s what allows the oversized glass. You’re not limited to a 36-inch swing path with standard hinge hardware. You get a plane of glass that can span the full height of a San Antonio entryway, flooding the foyer with daylight and creating sightlines that conventional doors simply can’t produce.

The frame is extruded aluminum with a wall thickness of 0.098 inches, which is heavier than what you’ll find on most residential door systems. That matters in Texas heat. Thin aluminum expands, contracts, and eventually leaks air. This profile holds its shape. The 2.56-inch profile width gives the door substantial visual presence at the frame line, and it’s wide enough to house a thermal break plus solid locking hardware without looking chunky. Buyers choose the VLX 100 because they’re doing a modern build in the Pearl District, a mid-century refresh in Oak Hills, or a ranch-to-contemporary remodel in Stone Oak, and they want a statement entrance that won’t warp, bind, or lose its seal after three San Antonio summers.

Lightwell Windows San Antonio carries the full ViewLux line because the engineering holds up here. Our installers have set these doors in new construction and retrofit openings across Bexar County, and we’ve seen how the weight distribution and adjustable pivot hardware make a modern pivot system realistic for both slab-on-grade and raised-foundation homes in San Antonio.

Technical Specifications

The numbers below are the ones that matter when you’re comparing pivot door systems. We’re listing them plainly because a serious buyer should know exactly what they’re getting before scheduling an estimate.

• Frame wall thickness: 0.098 inches of extruded aluminum, which resists racking and keeps the pivot hardware anchored.
• Profile width: 2.56 inches, giving the frame strong sightlines and room for a true thermal break.
• Maximum panel span: 60 inches wide by 120 inches tall, which covers most residential entryways in the San Antonio market without custom engineering.
• Glass options: Clear, frosted, obscure, Low-E, tempered, and laminated. Each can be combined where code or design requires it (for example, Low-E plus tempered for sun-facing entries).
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Powder-coat and anodized finishes carry different durability characteristics, and we’ll help you pick based on sun exposure and architectural style.
• Performance ratings: NFRC-rated thermal performance via thermal break technology, AAMA 812 sealant compliance, and AAMA 2400/2410 installation standard compliance on every project we set.
• Wind-load rating: Engineered to meet local San Antonio climate requirements, including storm-season wind pressures common to Bexar County.

Performance Features

Thermal Efficiency. The aluminum frame includes a thermal break that separates the interior and exterior metal surfaces, cutting conductive heat transfer. In San Antonio’s 100-degree summers, that’s the difference between a door that radiates heat into your hallway and one that actually performs. NFRC ratings on the VLX 100 with Low-E glass exceed what you’d get from a non-thermally-broken aluminum door.

Acoustic Performance. Laminated glass takes the edge off traffic noise, which matters if you’re on Fredericksburg Road, Broadway, or anywhere near Loop 410. The heavier the glass package, the better the sound control. We’ll spec laminated glass on street-facing entries and tell you exactly what kind of decibel reduction to expect.

Airtightness and Weather Seal. The door’s perimeter gasket system and the AAMA 812 foam sealant we apply to every joint create a continuous air barrier. That’s not optional in San Antonio, where dust season and pollen season overlap. A properly sealed pivot door keeps conditioned air in and Hill Country dust out.

Waterproofing. The full perimeter seal plus the sill design on the VLX 100 keeps wind-driven rain from finding a path in. We also run a water test on every installation before we call it done. San Antonio gets sudden, heavy downpours, and an entry door that leaks during the first thunderstorm is a warranty claim waiting to happen.

Wind Resistance. This system is wind-load rated for the requirements we see across the San Antonio metro. The pivot hardware anchors into the structure at the floor and header, distributing force better than a standard hinge assembly. For homes in more exposed areas, we can step the glass up to impact-resistant laminated for extra protection.

Security and Hardware. The VLX 100 works with multi-point locking hardware, which locks at multiple points along the panel height rather than a single latch at the handle. Combined with the structural weight of the pivot system, you’re not getting an easy kick-in point. Tempered or laminated glass options add another layer of intrusion resistance.

Color and Glass Options

There are six finish choices on the VLX 100, and each one reads differently depending on your home’s architectural language. Premium Black is our most-ordered finish in San Antonio right now. It’s dramatic against white stucco and limestone, and it gives contemporary builds in the Pearl District and Southtown a crisp, gallery-like entry. Pure White feels softer and works well on Mediterranean and Spanish Revival homes where you don’t want the door to compete with ironwork and tile. Anodized Silver has the raw, architectural quality that pairs well with mid-century moderns and steel window systems. Bronze sits between black and silver, and it hides dust well, which is not a small thing during San Antonio’s dry spells. Champagne has a warmer, slightly reflective tone that elevates transitional and French-influenced facades. Teak Wood is a wood-grain finish over aluminum, giving you the warmth of a wooden pivot door without rot, warping, or annual refinishing.

Glass selection is driven by orientation and privacy. Clear maximizes daylight and views. Frosted and obscure glass are popular on front entries where you want light but not a direct sightline into the foyer. Low-E helps block solar heat gain, and on a west-facing San Antonio entry, it’s worth every dollar. Tempered is standard for any large glass panel, and laminated adds sound control and impact resistance. We’ll walk you through the combinations and what they cost before you commit to anything.

Installation by Lightwell Windows San Antonio in San Antonio

A pivot door only performs as well as the opening it sits in. The door weighs as much as a small person. The glass is oversized. The pivot hinges carry the full panel load through the floor and top jamb, which means the rough opening has to be dead level, plumb, and square before the door ever gets set. If the installer fudges the shimming or skips the perimeter seal, you’ll get a door that binds at the corner, leaks air at the top, and eventually falls out of adjustment. None of that is covered by a manufacturer warranty.

Our process at Lightwell Windows San Antonio starts with a pre-install inspection. We check the rough opening dimensions against the ordered panel, confirm the floor can support the pivot point load, and look at the substrate to make sure the perimeter seal will adhere correctly. Then we set the door to level, plumb, and square using shims and structural fasteners, never relying on foam alone to hold the frame in place. Every joint gets AAMA 812 low-expansion foam sealant, the same standard we use on our window installations across San Antonio. We follow AAMA 2400/2410 installation guidelines as a floor, not a ceiling. After the door is anchored and the glass is set, we run a final water test and walk you through operation and hardware adjustment.

San Antonio has its own considerations. Our soil is expansive clay, and pier-and-beam homes shift with drought and rain cycles, which can affect an entry opening over time. We account for that by checking the opening’s current condition carefully and flagging any movement we see. Building code here requires tempered glass in doors and sidelights, and we handle permitting and inspection coordination when the scope requires it.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in San Antonio

If you’re planning a new build or a front-entry remodel in San Antonio, the VLX 100 is worth pricing out. We’ll come to your home, measure the opening, and walk you through finish and glass options with real numbers. Call Lightwell Windows San Antonio at (325) 420-4173 to schedule your free on-site measurement and get a written quote. No pressure, no vague pricing, just a clear number for a door that’ll stop people at the curb.

Written by the team at Lightwell Windows San Antonio, serving San Antonio and the surrounding Bexar County area as an authorized ViewLux installation partner.
