VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in San Antonio, TX | Lightwell Windows San Antonio

The VLX 80 Fixed / Picture Window is a non-operable aluminum window built for one purpose: putting as much glass between you and the outside as the frame will physically allow. Homeowners across San Antonio choose it for living rooms, stairwells, and any wall where the view does the heavy lifting. Lightwell Windows San Antonio is an authorized ViewLux installation partner, which means we order the VLX 80 directly, install it to AAMA standards, and stand behind the finished opening with our own workmanship warranty. If you’re pricing a picture window for a Hill Country view, a downtown condo, or a mid-century remodel in Alamo Heights, call (325) 420-4173 for a free on-site measurement and fixed quote.

Call (325) 420-4173

Product Overview – VLX 80 Fixed / Picture Window

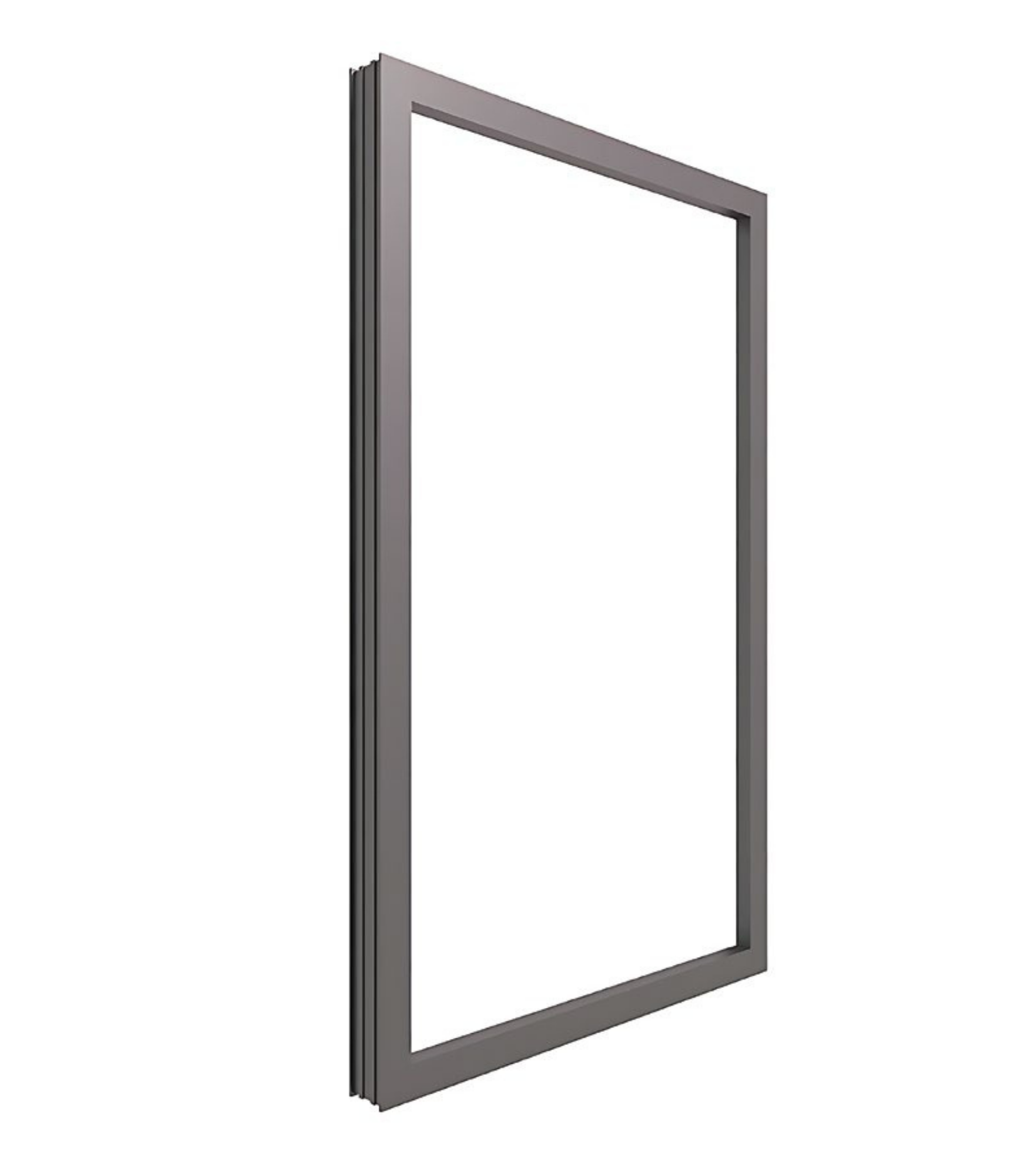

The design intent behind the VLX 80 is simple: maximize glazed area, minimize frame presence, and let the glass do the work. Every dimension of this window is engineered around that idea. The profile width comes in under two inches, which means more daylight and less aluminum interrupting your sightline. The wall thickness is a robust 0.079″, so even at wide spans the frame holds its shape without sagging or twisting over San Antonio summers that regularly push attic and wall cavity temperatures past 130°F.

Because the VLX 80 doesn’t open, there’s no crank, no sash hardware, no visible lock mechanism, and no gasket channel breaking the vertical line of the frame. What you see is a clean rectangular aperture of glass. That’s what makes it a favorite for floor-to-ceiling applications in contemporary builds around the Pearl District, Southtown lofts, and newer construction in Cibolo and Boerne. It also works beautifully in ranch-style homes where a wide, low picture window is the natural focal point of a front elevation.

We recommend the VLX 80 to clients who want the look of a curtain wall without the commercial price tag. The aluminum construction tolerates the UV load, humidity swings, and occasional hail we see here in Bexar County far better than wood or vinyl frames do over a 20-year cycle. And because ViewLux builds the VLX 80 as a fixed unit, the frame doesn’t carry the mechanical complexity of a slider or casement. Fewer moving parts means fewer long-term failure points.

What matters to our clients is what the window does after installation: it stays square, keeps the weather out, and frames the view like a picture hung on the wall. That’s the standard we install to in every San Antonio home we service.

Technical Specifications

• Frame profile width: 1.97″ – deliberately narrow to maximize glass-to-wall ratio.
• Aluminum wall thickness: 0.079″ – heavier-gauge extrusion than many competitor fixed windows in this class.
• Maximum span: Up to 120″ wide on a single lite, allowing true panoramic openings without a center mullion in most residential applications.
• Glazing options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Installation standard: AAMA 2400/2410 compliant with AAMA 812 low-expansion foam perimeter seal.
• Glazing type: Fixed, non-operable. No screen required.
• Hardware: None exposed. Interior glazing bead only.

All the numbers above are the factory specs as ViewLux publishes them for the VLX 80. What they don’t tell you is how those specs translate to a window that actually performs inside a San Antonio wall cavity. That’s where installation quality takes over, and it’s the reason we don’t sub out our installs to third-party crews.

Performance Features

Thermal Efficiency – The VLX 80 uses thermal break technology that separates the interior and exterior aluminum surfaces, cutting conductive heat transfer through the frame. With Low-E glazing specified for our climate zone, the window earns NFRC-rated energy performance numbers that hold up during San Antonio’s 100-degree July afternoons. We can pull the exact NFRC label for your glass package before you commit.

Acoustic Performance – A fixed window, by nature, seals tighter than any operable unit. The VLX 80 adds structural rigidity and laminated glass options that measurably reduce street noise. For homes near Loop 410, I-10, or the Union Pacific rail corridor on the near East Side, we specify laminated glazing and see meaningful reductions in perceived traffic volume inside the room.

Airtightness & Weather Seal – Because the sash never moves, the VLX 80 achieves an airtight seal at the glazing line and the frame perimeter. We install every unit with AAMA 812 low-expansion foam sealant on all four perimeter joints. That foam doesn’t shrink back like butyl tape, which means the seal stays intact through our freeze-thaw cycles and 100% humidity summer months.

Waterproofing – The fixed design eliminates the sill dam and weep system compromises you get with sliders. On the VLX 80, water management starts at the factory flange and finishes with our flashed, tilted sill pan installation. We have tracked warranty claims on our own installs for years, and water intrusion on a properly installed fixed aluminum window is a rare event in San Antonio weather conditions.

Wind Resistance – The heavier 0.079″ wall thickness exists for a reason. A 120″ span on an east-facing or north-facing wall in San Antonio sees real wind loading during spring frontal passages and summer thunderstorm downbursts. The VLX 80 is wind-load rated and tested, and we specify it for second-story and exposed gable applications where a lesser frame would flex visibly under pressure.

Security & Hardware – A non-operable window is, by definition, the most burglar-resistant opening in your home. There’s no latch to force, no track to lift the sash out of. For ground-floor or street-facing installations, we recommend the laminated glass option, which meets impact-resistance standards and holds together if struck. Combine that with a fixed frame and you have a window that makes intruders move along.

Color & Glass Options

ViewLux finishes the VLX 80 in six colors. Premium Black anchors a modern farmhouse or industrial loft exterior and pairs well with white interior walls above a dark window. Anodized Silver is a true aluminum finish, not a paint, and it belongs on mid-century modern homes in Terrell Hills and Castle Hills where original aluminum windows are being replaced. Bronze and Champagne read as warmer metallics and work nicely with brick exteriors, particularly our San Antonio limestone and red-brick ranches. Pure White is the safe, clean look for traditional elevations. Teak Wood is a wood-grain finish on aluminum that gives the warmth of timber without the rot and termite exposure that real wood frames suffer in Central Texas humidity.

Glass selection depends on orientation and exposure. Clear is for shaded or north-facing walls. Low-E is our default recommendation for any San Antonio wall that sees direct sun, because it cuts solar heat gain without darkening the view. Frosted suits bathrooms and side yards where privacy matters more than the view. Tempered is required by code in many locations and comes standard where needed. Laminated adds impact resistance and sound deadening. Gray Tint and Black Tint manage glare and solar load on west-facing walls. Tell us where the window is going, and we will tell you which glass package makes sense for that specific opening.

Installation by Lightwell Windows San Antonio in San Antonio

Every VLX 80 we sell in San Antonio gets installed by our own in-house crews, and the process is the same on every job. We start with a pre-install inspection of the rough opening. We check framing condition, water damage, and squaring before we ever order the window, because no window can fix a rotten header or a bowed stud. If the opening is out of square, we fix it or we stop work and tell you before cutting anything.

The window is set level, plumb, and square. We shim at prescribed points that match the manufacturer’s anchoring pattern, never at the corners where shims transfer stress to the glass. The perimeter gets a continuous AAMA 812 low-expansion foam seal on all four sides. The exterior is flashed to shed water, the sill is pan-flashed with a positive slope to the exterior, and the interior gets an insulated reveal before trim covers the seam.

After the window is secured, we run a final water test on the lower corners and sill, inspect the glazing bead for seating, and clean the glass. Your job isn’t done until the window is cleaned inside and out and the work area is swept.

Why does any of that matter? Because ViewLux warranties cover the window, not the installation. If the window leaks because it was installed out of square or sealed with the wrong product, the manufacturer warranty will not save you. You’ll be paying someone else to take it out and do it again. We install to AAMA 2400/2410 standards, we follow the AAMA 812 sealant spec, and we install every window as if the warranty inspection is happening next month, not someday. That’s not marketing language in San Antonio. It’s how you avoid the phone call two years later that starts with “there’s water under my window.”

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window? Most VLX 80 fixed windows arrive in San Antonio within 4 to 6 weeks from order date, depending on glass type and finish. Custom oversized units over 96″ may run longer. We confirm lead times at quote and won’t take a deposit without locking your delivery window in writing.

Does the VLX 80 qualify for energy tax credits? The VLX 80 can qualify when ordered with the right Low-E glass package for the South-Central climate zone, but qualification depends on the specific glass combination and your home’s energy audit results. We’ll tell you during the quote process whether your configuration meets the NFRC ratings needed, and we won’t claim a credit until we verify it. Call (325) 420-4173 with your glass needs.

What warranty comes with the Fixed / Picture Window? The VLX 80 carries ViewLux’s manufacturer warranty on the frame, finish, glass seal, and glazing. Labor warranty is separate and comes from us: Lightwell Windows San Antonio covers our installation workmanship in writing. We’ll give you both warranty documents before you sign so you know exactly what is covered and for how long.

Can I customize the size? You can order the VLX 80 to your exact rough opening within the 120″ maximum span. There’s no “stock size only” limitation here. Custom widths and heights are standard practice for us in San Antonio, and we measure every opening to the 1/8″ before we send the order to ViewLux.

How do I maintain aluminum frames? Wash the frame with mild soap and water twice a year, rinse fully, and keep the bottom bead free of dust and debris. Anodized and powder-coated finishes require no painting or sealing. We’ll give you the exact care instructions for your finish choice when we install, and we’re happy to walk you through the first cleaning on the day we finish. Call (325) 420-4173 for any maintenance questions.

Get a Quote – VLX 80 Fixed / Picture Window in San Antonio

Pricing on a custom fixed picture window depends on width, glass package, and whether we’re doing a simple swap or a new rough opening. Call (325) 420-4173 and we will schedule a free on-site measurement at your San Antonio home. You’ll get a written, fixed quote, a lead time, and a window recommendation that makes sense for your wall, not a sales pitch that makes sense for our margin.

Written by the team at Lightwell Windows San Antonio, authorized ViewLux installation partner serving San Antonio and surrounding communities.
